New Type of Pre-equipped Composite Plastic Volumetric Piston Type Water Meter LXH-15A-20A

Date:2023-12-27 15:23:18


Ningbo Well Energy Technology Co., Ltd. has launched a new type of pre-equipped composite plastic volumetric piston type water meter LXH-15A-20A. pre-equipped composite plastic volumetric piston type water meter adopts a unique working principle. Under the action of water pressure, water enters the measurement chamber from the lower water inlet, pushing the rotating piston to rotate around the central axis of the measurement chamber. At the same time, water flows from the empty space inside the piston and the space formed between the piston and the measurement chamber wall to the upper water outlet. As the piston rotates, Connected to the counting mechanism by a rotating shaft and fork, the volume flowing through the water meter can be calculated by recording the number of piston rotations.


The pre-equipped composite plastic volumetric piston type water meter is a special type of volumetric water meter that has the following characteristics:
1. The pre-equipped volumetric water meter adopts a rotating piston structure, with a high measurement level, which can reach Class, R160, R200 levels, and can achieve accurate measurement.
2. The movement has high sensitivity, and the wheel window is sealed with a special liquid, which can maintain clear readings for a long time.
3.The temperature level of ccomposite plastic volumetric water meter is T50, which can adapt to different usage environments.
4.After adding pulse wires, it can become a pulse output volumetric piston type water meter for remote reading, meeting the requirements of remote monitoring and reading.


The following are the technical parameters of the composite plastic piston type water meter:


MAIN TECHNICAL DATA According to ISO4064 (GB/T778.1-1996) Standard

Meter size
Dia
DN
(mm)
Class Qs
Overload
Flow
Qn
Nominal
Flow
Qt
Transitional
Flow
Qmin
Min
Flow
Min
Reading
Lectura
Max
Reading
Lectura
m3/h L/h m3
15 C 3 1.5 22.5 15 0.0001 9999
20 C 5 2.5

37.5

25 0.0001 9999


MAIN TECHNICAL DATA
According to ISO4064 (GB/T778.1-2007) Standard

DN
SIZE

Mm
Inch

15
1/2"

20
3/4"

Q4(m³/h)

3.125

5

Q3(m³/h)

2.5

4

R160

Q2(L/h)

25

40

Q1(L/h)

15.625

25

R200

Q2(L/h)

20

32

Q1(L/h)

12.5

20

Min reading(m³)

0.0001

0.0001

Max reading(m³)

9,999

9,999

Max pressure(MAP)

16

16

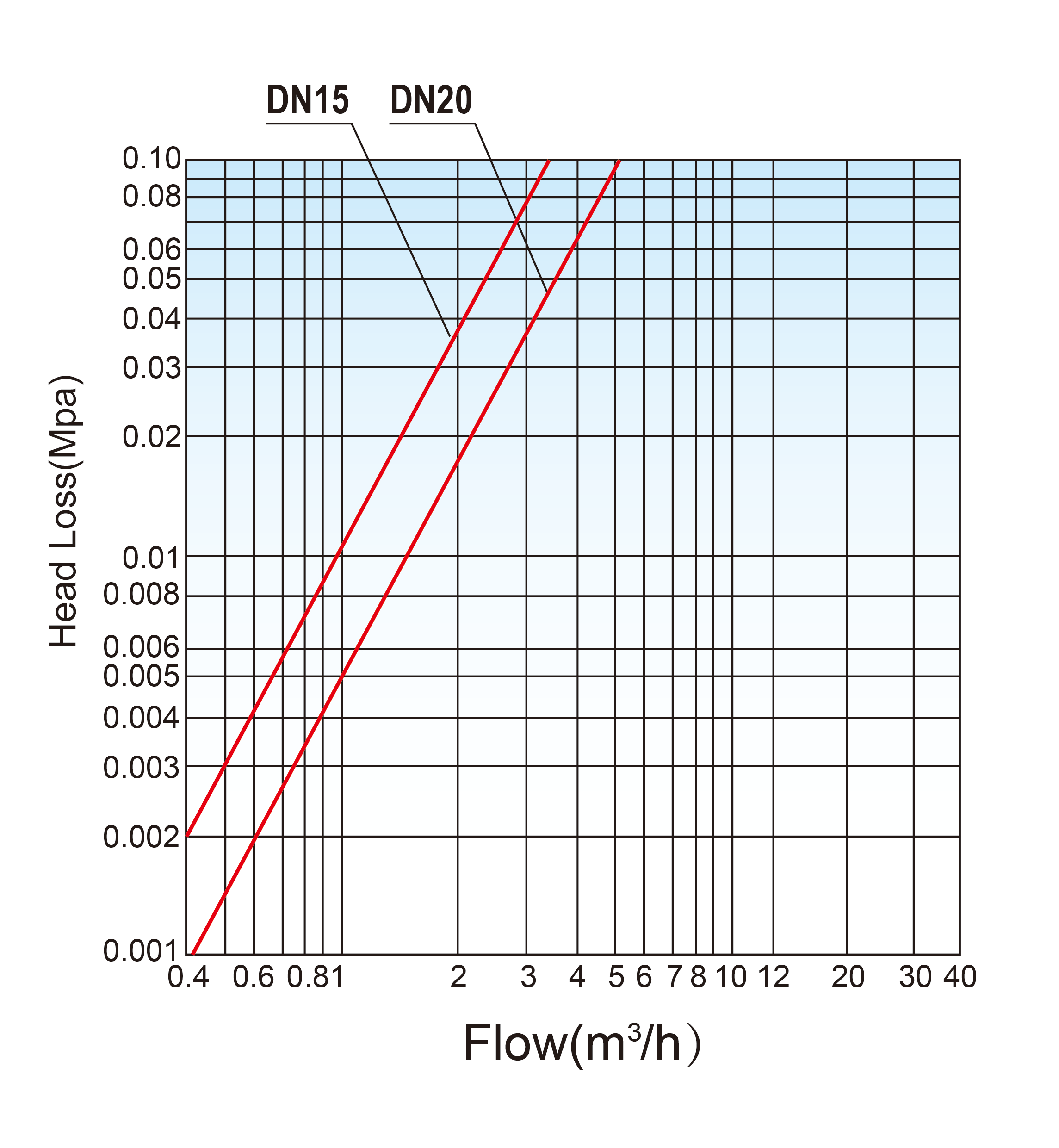

Max loss(∆ P)

63

63

Max temperature

T50

T50

Pulse output option

Vmax=24V, Imax=100mA, Pmax=2W

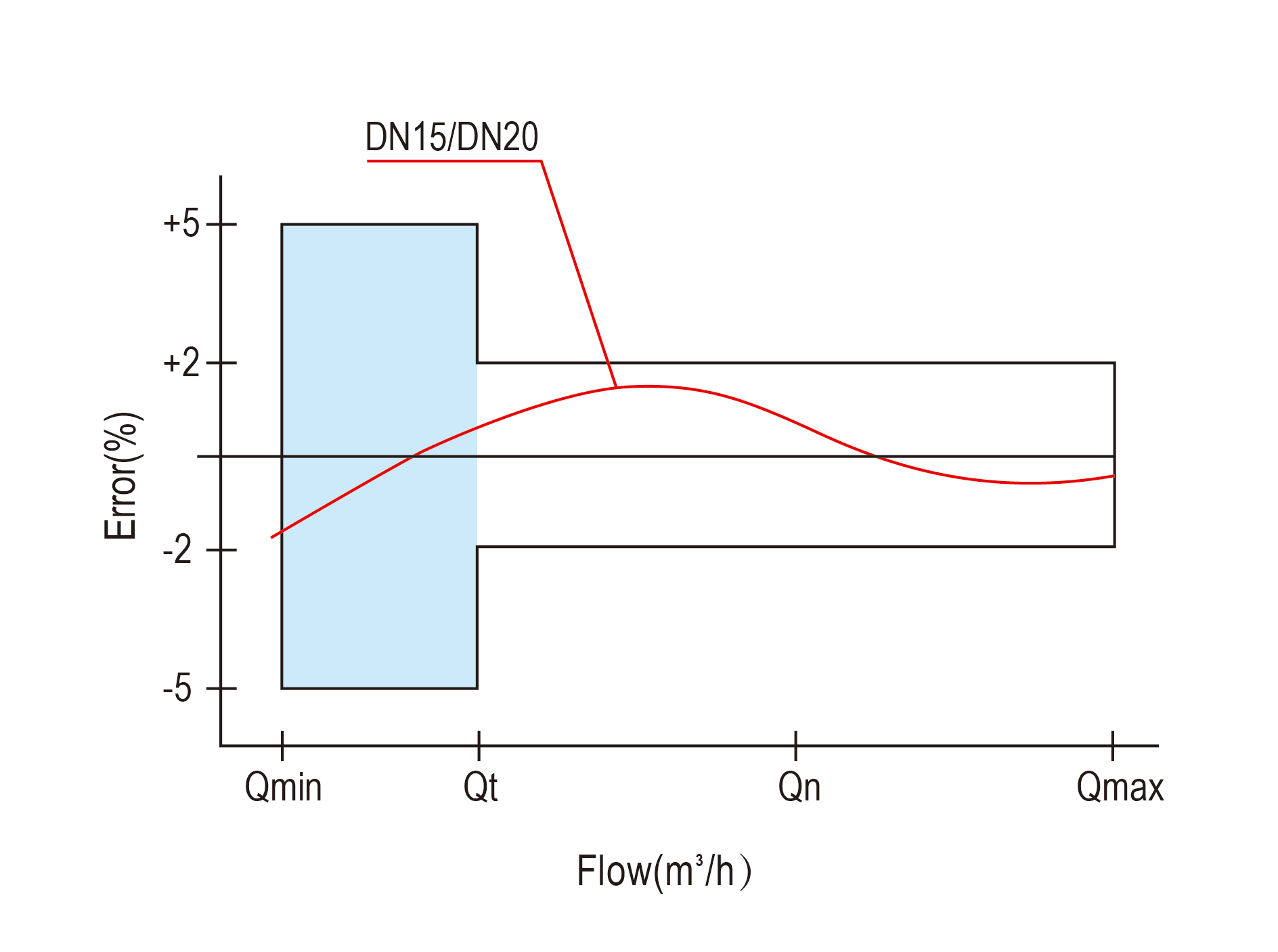

INDICATING ERROR

At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)

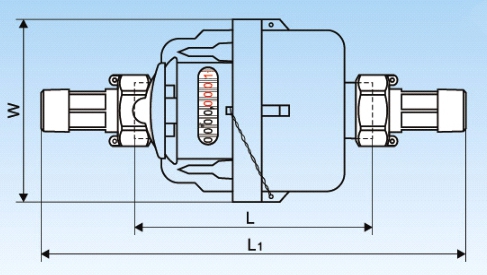

DIMENSIONS AND WEIGHT

Meter size
Dia
DN
(mm)
Length LWidth L1Height W

Connrcting Thread

D

Weight ( not include fittings)

KGS

mm
1511519186G 3/4B0.39
2013022886G 1B0.5


WORKING CONDITION

Water temperature:≤50℃ for cold water meter

Working pressure:≤1.6Mpa
