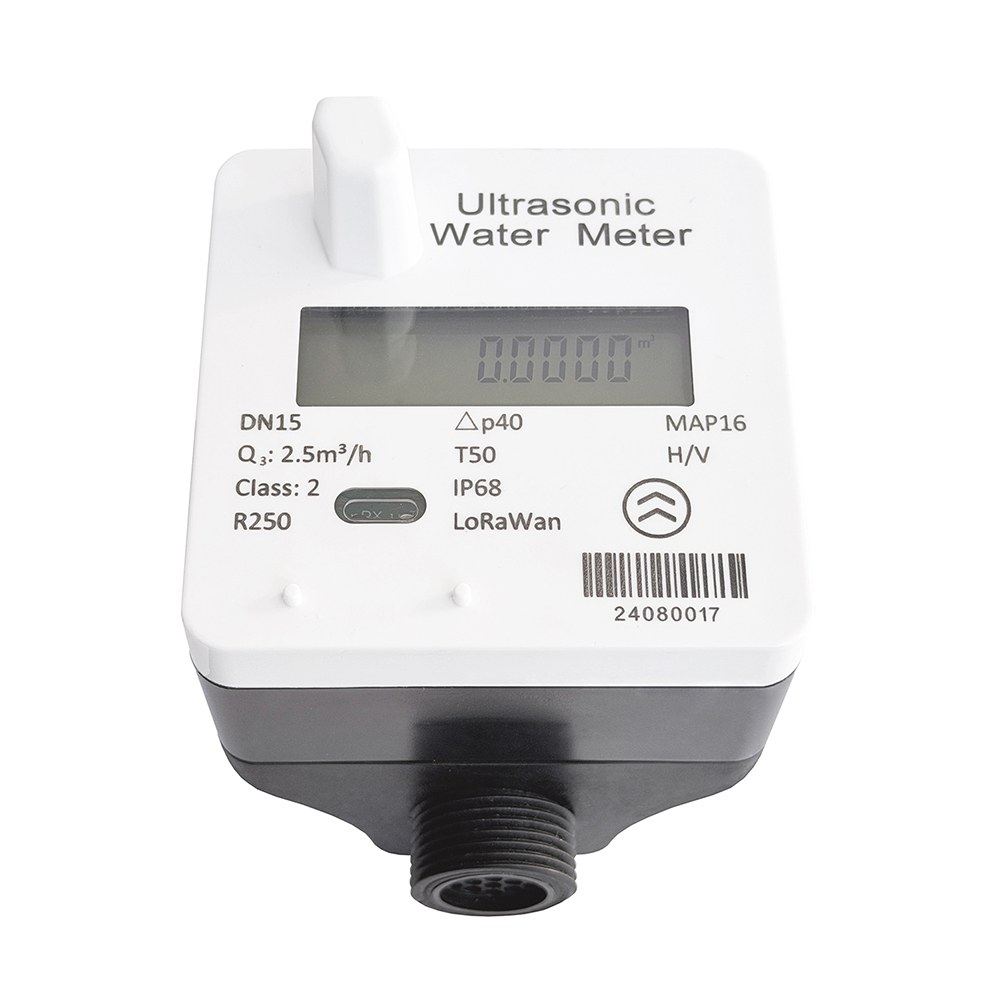

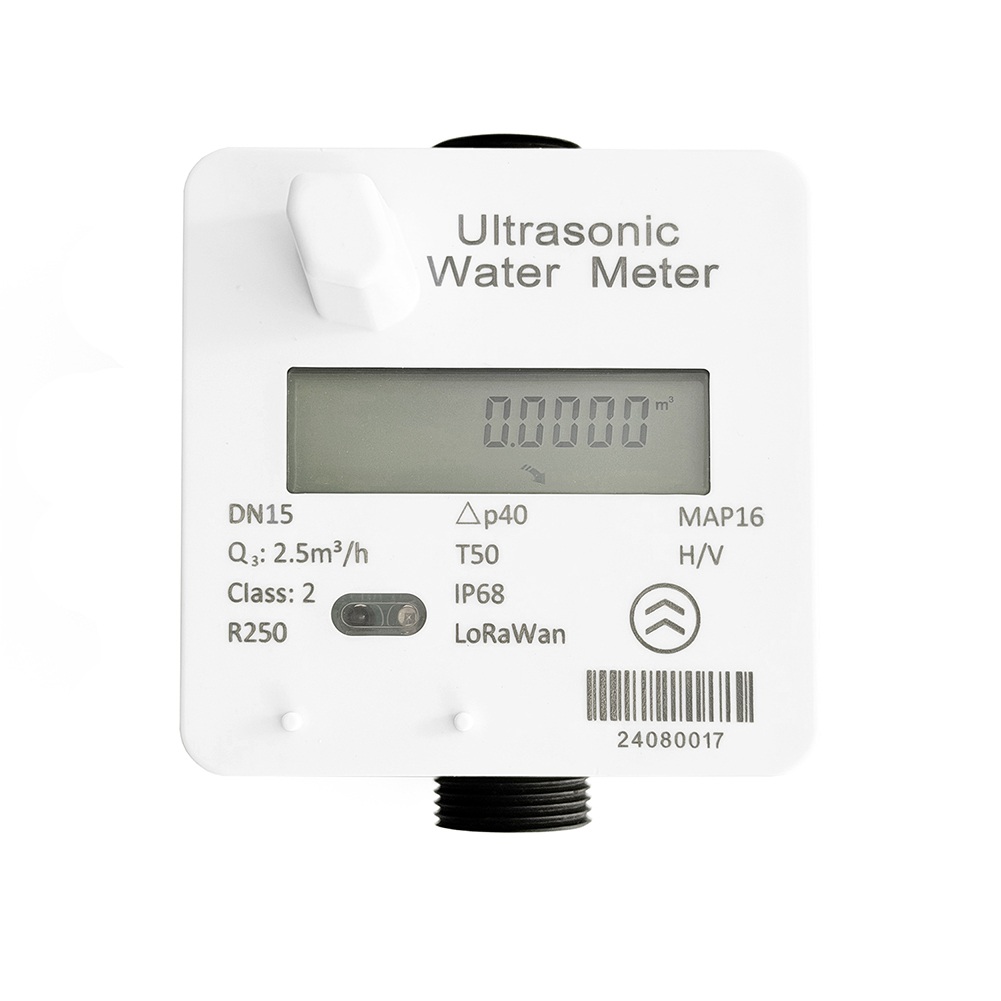

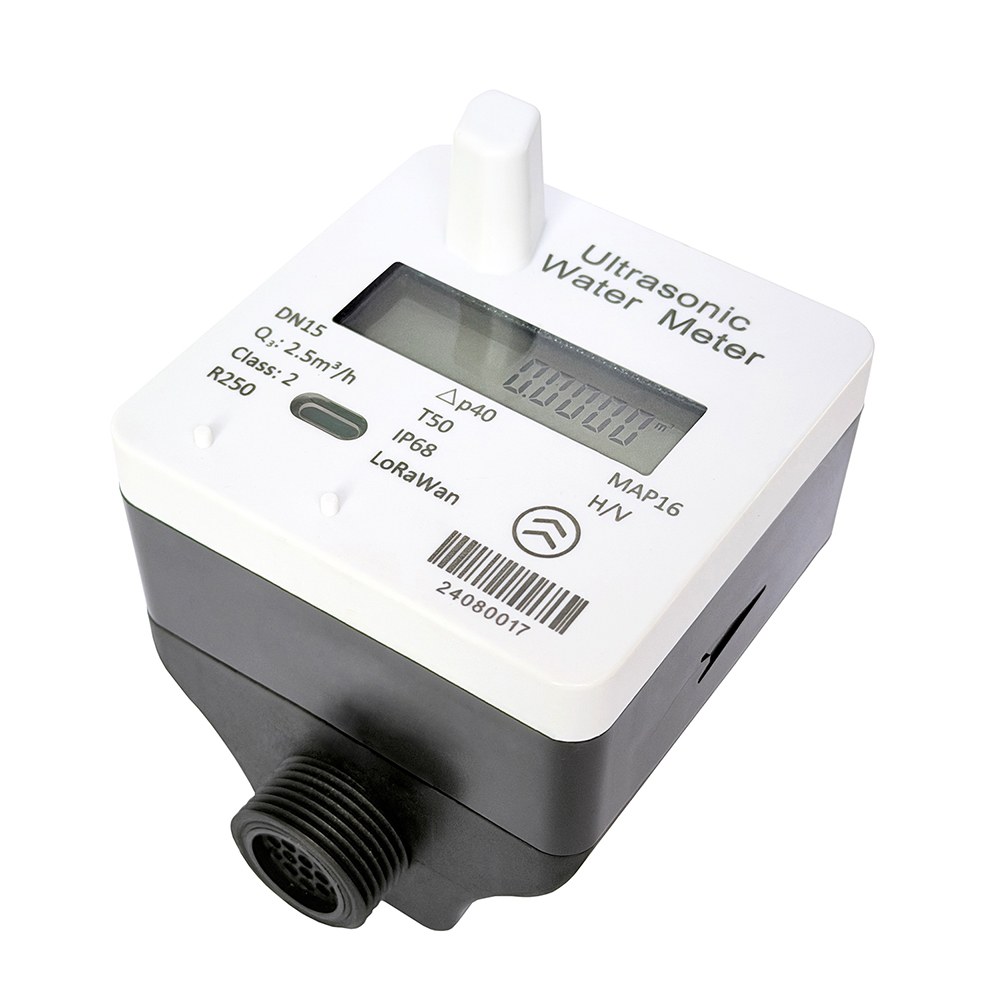

Water Meter

LXC-15B-25B

1. DN15-DN25

2. Communication: M-BUS, RS-485, Pulse output, LoRa, LoRaWAN, NB-IoT

3. Accuracy: R250

4. Frequency: LoRa/ LoRaWAN   865MHz, 902MHz, 868MHz, 915MHz, Customized Frequency Requirement

5. Material: Composite Plastic

6. Unit: L/ m3/ Gal (Optional)


Smart ultrasonic water meter measurement of water consumption in households, apartment buildings and small commercial properties



TECHNICAL SPECIFICATION:

Item

Parameter

Meter Type

Ultrasonic Water Meter

Nominal Diameter (mm)

DN15~DN25

Q3/Q1

R250

Measurmedium

Water

Accuracy class

Class 2

Water pressure class

1.6MAP ( 16 bar)

Pressure-loss class

Δp40

Temperature class

T50

Installation position

H/V

The installation sensitivity class

U0/D0

Electromagnetic class

E1

Environmental class

B

Key-press

Touch control technology

Types of Indicating device

LCD:9-digits, 0~99999.9999m³

Menu Contents

Instantaneous flow (m3/h), cumulative flow (m3), screen detection, table address, cumulative working time (h), date (year/month/day), caliber, software version

Communication Interface

M-BUS, RS485, Pulse output, LoRa, LoRaWAN, NB-IoT

Power Source

Lithium battery ER26500(replaceable)

Battery Voltage &Capacity

3.6V , 8500mAh

Life span

10 years.

IP code

IP68

Storage Temperature

-25℃~+55℃

Cable length

1.0 m


FLOW RATE:

Parameter

Unit

Data value

Nominal Diameter


DN15

DN20

DN25

Start flow rate

m3/h

0.003

0.005

0.005

Qmin(Q1)

0.010

0.016

0.0252

QTransitional(Q2)

0.016

0.0256

0.040

Qn/permanent(Q3)

2.5

4.0

6.3

Qoverload(Q4)

3.125

5.0

7.875

Range ratio=Q3/Q1


250

Temperature


T50

Battery life

Year

>10


DIMENSION

Nominal Diameter( mm )

DN15

DN20

DN25

Thread

G3/4B

G1B

G1 1/4B

L(mm)

110

130

160

H(mm)

80

85

90

W(mm)

85

85

85


WORKINGCONDITION:

Watertemperature: 0~50℃

Waterpressure: ≤16 Bar
