1. Model No.: LXC-15G-40G

2. Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3. Accuracy: R400/R250

4. Frequency:LoRa/ LoRaWAN   EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

5. Unit: L/ m3/ Gal (Optional)

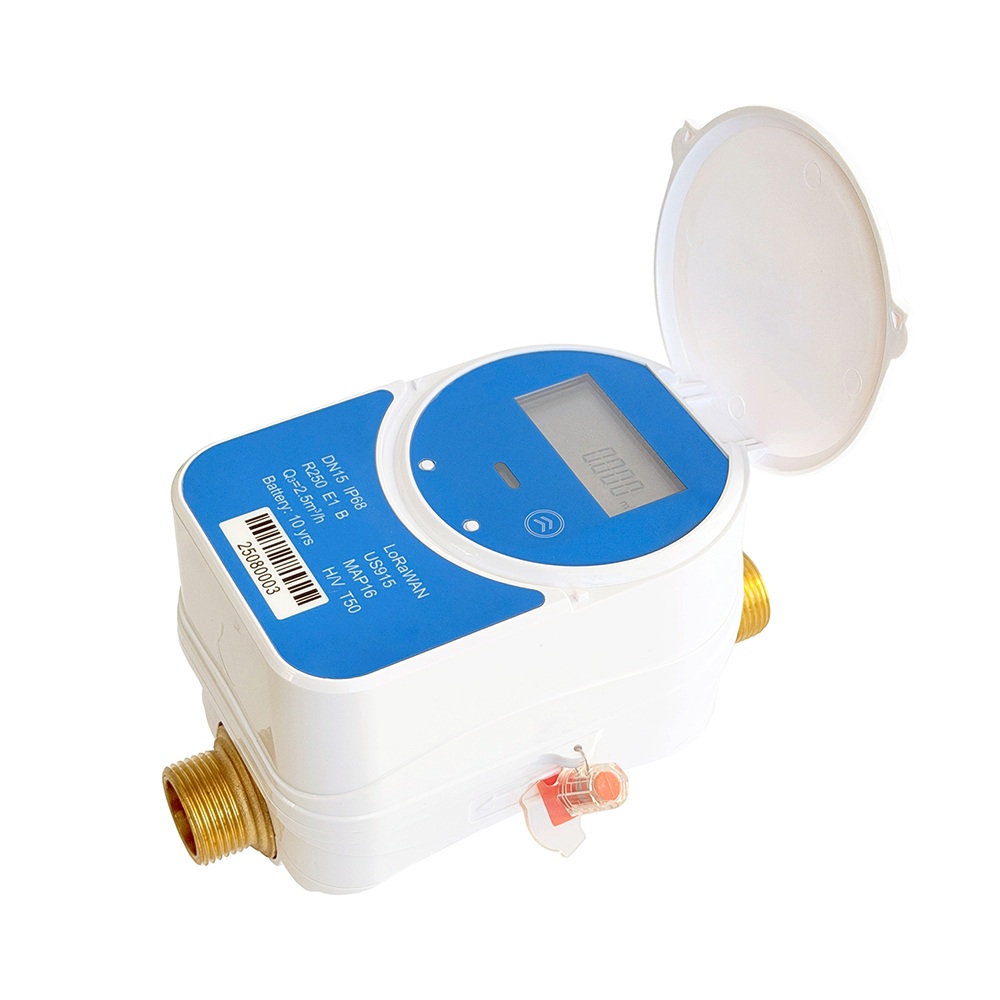

1. Model No.: LXC-15E-20E

2. Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3. Frequency: LoRa/ LoRaWAN  EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

4. Valve control: Valve close/ open

5. Detection functions

6. Unit: L/ m3/ Gal (Optional)

1. Model No.: LXC-15B-25B

2. Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3. Accuracy: R250

4. Frequency: LoRa/ LoRaWAN   EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

5. Material: Composite Plastic

6. Unit: L/ m3/ Gal (Optional)

1.Model No.: LXC-15F-40F

2.Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3.Internal Lithium battery can be replaced

4.Waterproof standard: IP 68

5.Frequency: LoRa/ LoRaWAN   EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

6.Unit: L/ m3/ Gal (Optional)

1. Model No.: LXC-50M-500M

2. Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3. Accuracy: R160

4. Frequency: LoRa/ LoRaWAN   EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

5. Unit: L/ m3/ Gal (Optional)

1. Model No.: LXC-50H-500H

2. Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

3. Accuracy: R160

4. Frequency: LoRa/ LoRaWAN   EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

5. Unit: L/ m3/ Gal (Optional)

Accuracy: Class C/ R160

Compatible with multiple communication modules

Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

LoRaWAN Frequency: EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

Multi-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (50°C) and hot water (90°C)

Sizes: DN15  to 20 mm (1/2” – 3/4”).

Body material: Brass

Accuracy: Class C/ R160

Compatible with multiple communication modules

Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

LoRaWAN Frequency: EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (50°C) and hot water (90°C)

Sizes: DN15  to 25 mm (½” – 1”).

Body material: Brass

Accuracy: Class C/ R160

Compatible with multiple communication modules

Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

LoRaWAN Frequency: EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (50°C)

Sizes: DN15  to 25 mm (½” – 1”).

Body material: Composite plastic

Custom appearance & functional solutions available,

Rebuild / Upgrade your Modular Water Meter

Can Adapt To Multiple Pre-equipped Multi Jet Water Meters

Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

Frequency:LoRa/ LoRaWAN   EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

Waterproof: IP68

Custom appearance & functional solutions available,

Rebuild / Upgrade your Modular Water Meter

Can Adapt To Multiple Pre-equipped Single Jet Water Meters

Communication: Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1)

Frequency:LoRa/ LoRaWAN   EU433, IN865, EU868, US915, AU915, AS923 and customized frequency

Waterproof: IP68

Multi Jet Dry type

Material body: Brass

Sizes: DN15  to  50mm, (½” – 2”), Available for cold water (30°C), hot water (90°C)

Accuracy: DN15(½”), Class B / Class C / R160

                 DN20-50mm, (¾” – 2”)   Class B

Universal use. Easy for interchange & maintenance

1 liter/pulse,    10 liters/pulse,     0.1 gallon/pulse,     1 gallon/pulse

Accuracy: DN15(½”), Class B / Class C / R160
                    DN20-50mm, (¾” – 2”)   Class B

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection

Available for cold water (40°C)

Sizes: DN15 (1/2”).

Body material: Nylon Plastic

Accuracy: Class B or R80

Pulse output 10 L/Pulse

Woltman type with pulse output

Transmission sensor: Reed switch

Body: Gray cast iron or ductile cast iron for option

Sustain its measuring accuracy and numeral display

Unique design and advanced testing measures ensure a secure transmission

Maximum distance between connected meter and a data collector: 150m

Applicable to various kinds of data collector
